Configuring Raspberry Pi as a Wireless-to-Wired Ethernet Bridge
Home : System Administration : Raspberry Pi as a Wireless-to-Wired Bridge
My apartment does not have hardwired ethernet, and the physical location of our incoming cable is such that it's very difficult to position wired ethernet anywhere. I've considered using a powerline adapter to run ethernet over the apartment's electric, but those adapter kits are a bit expensive. When I got my Raspberry Pi though, it occurred to me that I could use it to create an island of wired ethernet that feeds to the wifi connection we've got set up.

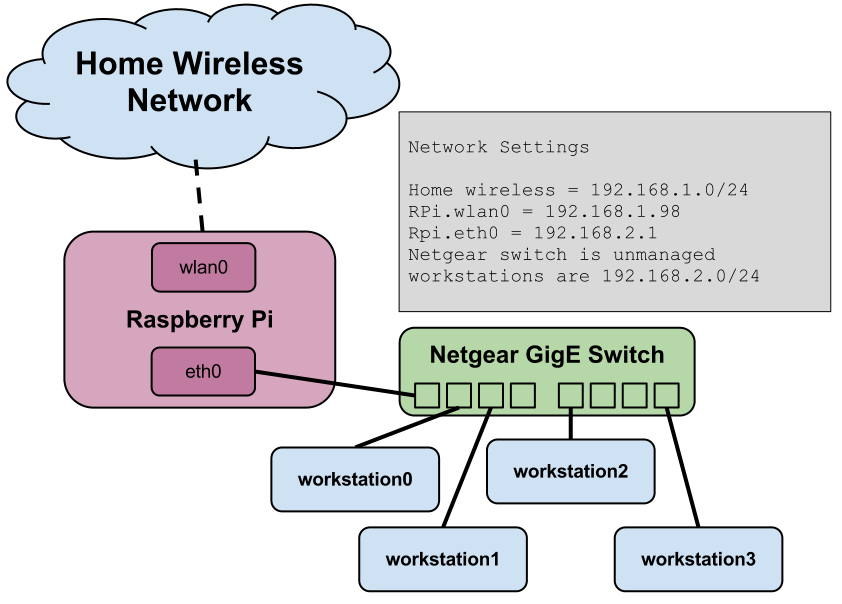

This is a depiction of the setup I was going for to turn wireless internet into wired.
I find iptables (and networking in Linux) extremely obtuse and hate having to figure this stuff out, so now that I've got it working I will leave the necessary configuration details below.
A much more comprehensive writeup on this concept has been developed by Robin Newman, so if this guide is unclear, I highly recommend checking out Robin's guide.
/etc/network/interfaces should look something like this. If you couldn't tell, this is Raspbian (a Debian-derived distribution)
# The loopback network interface auto lo iface lo inet loopback # the internal (wired) network interface allow-hotplug eth0 iface eth0 inet static address 192.168.2.1 network 192.168.2.0 netmask 255.255.255.0 broadcast 192.168.2.255 gateway 192.168.2.1 # the external (wifi) interface allow-hotplug wlan0 iface wlan0 inet static address 192.168.1.98 network 192.168.1.0 netmask 255.255.255.0 broadcast 192.168.1.255 gateway 192.168.1.1 wpa-ssid "homewifi" wpa-psk ... pre-up iptables-restore < /etc/network/iptables
The contents of /etc/network/iptables are:
*filter :INPUT ACCEPT [73:5085] :FORWARD ACCEPT [0:0] :OUTPUT ACCEPT [72:6792] -A FORWARD -i eth0 -j ACCEPT -A FORWARD -i wlan0 -m state --state RELATED,ESTABLISHED -j ACCEPT COMMIT *nat :PREROUTING ACCEPT [43:2584] :INPUT ACCEPT [2:278] :OUTPUT ACCEPT [0:0] :POSTROUTING ACCEPT [0:0] -A POSTROUTING -o eth0 -j MASQUERADE -A POSTROUTING -o eth0 -j MASQUERADE -A POSTROUTING -o wlan0 -j SNAT --to-source 192.168.1.98 COMMIT
which was generated by this script:
#!/bin/sh IPT=/sbin/iptables LOCAL_IFACE=eth0 INET_IFACE=wlan0 INET_ADDRESS=192.168.1.98 # Flush the tables $IPT -F INPUT $IPT -F OUTPUT $IPT -F FORWARD $IPT -t nat -P PREROUTING ACCEPT $IPT -t nat -P POSTROUTING ACCEPT $IPT -t nat -P OUTPUT ACCEPT # Allow forwarding packets: $IPT -A FORWARD -p ALL -i $LOCAL_IFACE -j ACCEPT $IPT -A FORWARD -i $INET_IFACE -m state --state ESTABLISHED,RELATED -j ACCEPT # Packet masquerading $IPT -t nat -A POSTROUTING -o $INET_IFACE -j SNAT --to-source $INET_ADDRESS
Of course, ip forwarding has to be enabled in the kernel by editing /etc/sysctl.conf and uncommenting a line:
# Uncomment the next line to enable packet forwarding for IPv4 net.ipv4.ip_forward=1
and then doing sysctl --system.
